Non- rechargeable Alarm System Lithium Li-SOCL2 Battery ER34615 19Ah 3.6V
Feature for Non- rechargeable Alarm System Lithium Li-SOCL2 Battery ER34615 19Ah 3.6V
- High energy density: 420WH/KG and 800WH/dm3
- High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V the end voltage is 2.0V or 2.5V.
- Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the capacity output is still more than 90%.
- Wide temperature range: the widest temperature range from -60℃ to 85℃
- Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than 10 years under room temperature.
Application For Non- rechargeable Alarm System Lithium Li-SOCL2 Battery ER34615 19Ah 3.6V
- Underwater Weapon, Military Communication Transmitter-receiver,
- Portable communication Equipment, RMPS and more.
- Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
- Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
- Intelligent water meter, Ammeter, Gas Meter
Packing Method:
In order to avoid battery short circle ,The battery put in specially foam pallet with individual hole, and the battery separate one by one
fixed battery pack by careful pack, put the paper board on the top and bottom and shrink by plastic thin film as below
30PCS/layer, 240Pcs/Carton, weight:26.5KG Size:44*27*33cm
Specification:
| No | Item | Data |
| 1 | voltage: | 3.6V |
| 2 | capacity: | 19000mAh(3mA / 2.0V) |
| 3 | Discharge end-voltage: | 2.0V |
| 4 | Operating voltage : | 3.5V(330Ω, in 5s) |
| 5 | Max constant discharge current: | 200mA |
| 6 | Max. pulse current: | 400mA |
| 7 | Ambient temperature range: | -55~ +85℃ |
| 8 | Storage life: | ≥10 year, Yearly self-discharge ≤ 1% |
More Detail data for Electronic Property
| Item | Measuring Procedure | Standard |
| Appearance | Visual check | Clean, unscratched and clearly labeled |
| Dimension | Measured by calipers with precision of 0.02mm | Maxφ34.2×61.5mm |
| Weight | Weighed by balance with precision of 0.1g | Max 106g |
| Open-circuit voltage | Measure by volt-meter with precision of 0.01V | ≥3.65V |
| Operating voltage | Measure by volt-meter with precision of 0.01V, connecting an impedance of 200Ωin series, Reaching the target voltage in 5 seconds. | ≥3.45V |
| Nominal discharge | 200Ω,20±2℃, Constant discharge to 2.0V. | ≥13.0Ah |
| Rapid discharge | 30Ω,20±2℃, Constant discharge to 2.0V. | ≥10.0Ah |
| Discharge at high temperature | Put battery in constant ambient temperature of 55±2℃ for 16 hours, discharge at 200Ω to 2.0V/cell. | ≥13.5Ah |
| Discharge at low temperature | Put battery in constant ambient temperature of -40±2℃ for 16 hours, discharge at 680Ω to 2.0V/cell | ≥6.5Ah |
| Charge | Prohibited | Prohibited |
| Over-discharge | Prohibited | Prohibited |
| Self discharge | Store the batteries at constant temperature of 20±5℃, Measure the nominal capacity yearly for 10 years. | ≤1% |
Pictures for Lithium Li-SOCL2 Battery
OEM Bulk Cell for Lithium Li-SOCL2 Battery
Battery pack:
We can add the wire and connector on the battery if you like
Other Size for Lithium Li-SOCL2 Battery
Certfication

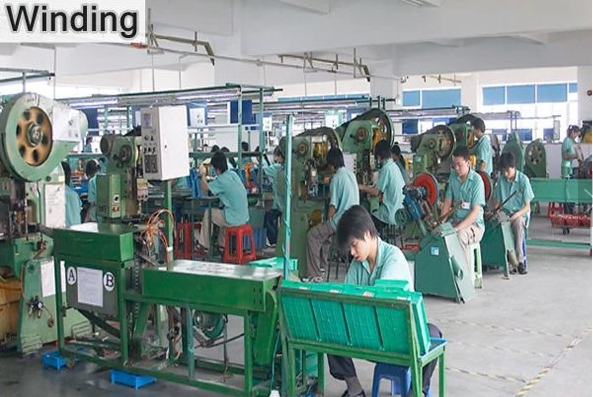

Factory Show
Storage Standard
>Cells should be stored in a clean
&dry(less than 30% RH) area
>Temp. should not exceed +30°C
According to the characteristics of the lithium sub-battery, after a long period of storage, the battery is prone to passivation. Please activate it before use. The activation method is: short-circuit the battery , connect the positive and negative electrodes with a thin iron wire for 3 to 5 seconds .
